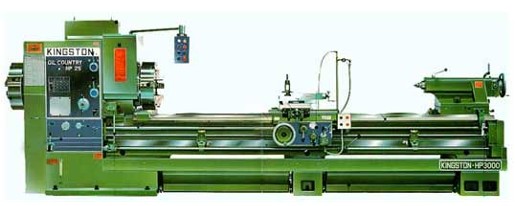

Kingston Lathe HK-3000 Series

New Lathes

Kingston Lathe HK-3000 Series

Swing over bed: 30"

Swing over cross slide: 20.5"

Height from floor to work center: 46-7/16"

Distance between spindle flange and tailstock center: 118"

Hole through spindle: 12-19/32"

Spindle nose: ASA A2-20

Number of speed changes: 16

Range of spindle speeds: 5-300 rpm

Number of feed changes: 40

Range of feeds per revolution longitudinal: 0.0024"-0.0337"

Cross 1/2 against longitudinal feed

Leadscrew diameter and threads per inch: 48mm (1 7/16") 2 TPI (P= 12mm)

Threading range whitworth: 1 to 28 TPI 50 kinds

Mertic 1 to 28mm pitch 50 kinds

Module 0.5 to 7M 50 kinds

D.P. 4 to 56 D.P 50 kinds

Compound rest top slide travel: 29-7/8"

Cross slide travel: 21-1/4"

Spindle Diameter: 3-15/16"

Spindle travel: 11-13/16"

Center MT No. 6

Width of bed: 22"

Main drive motor: 20 HP (15kw) 6P

Floor space required Length x Width: 206" x 62"

Net weight (approx.): 17,637 lbs.

Prices upon request.

Specifcations and prices are subject to cahnge without notice.
