New Lathes

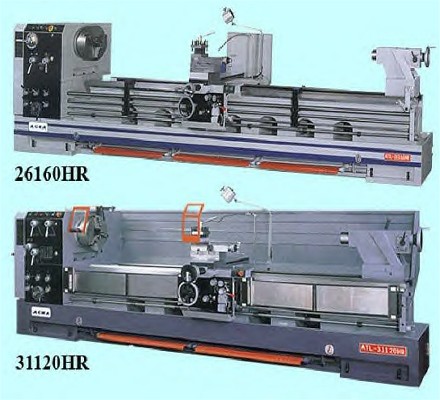

Acra Precision Lathe 2600/3100HR
26 X 80 HR Precision Engine Lathe
26 X 120 HR Precision Engine Lathe
26 X 160 HR Precision Engine Lathe
26 X 200 HR Precision Engine Lathe
31 X 80 HR Precision Engine Lathe
31 X 120 HR Precision Engine Lathe
31 X 160 HR Precision Engine Lathe
31 X 200 HR Precision Engine Lathe
SPINDLE
Supported By 2 Precision Taper Roller And One Ball Bearing
Dynamically Balanced, Hardened And Precision Ground
D1-11 Or A2-11 Spindle Nose
4 1/8" Spindle Bore-Optional 6 1/16"
TAIL STOCK
4 1/8" Quill Diameter
Travel Knock Out Tang
2 Speed For Easy Drilling
BED & STAND
One Piece Heavy Duty Structure Casting Floor Bed
Meehanite Casting Vibration Stress Relieved
Induction Hardened And Precision Ground Bed Ways
Precision Hand Scraped Removable Gap
Bed Width 18"
APRON
Automatic Feed And Threading, Fully Inter-Locked
Saddle And Top Slide Locking System
Forward-Off-Reverse Lever
Build In Rapid Feed Motor For B.C. Longer Than 80"
Cross Slide Way Hardened And Precise Ground
4 Way Tool Post
T Slot Compound
Cross Slide Screws Hardened And Oil Bathed
Rapid Longitudinal Feed-DBC-Over 120"
UNIVERSAL GEAR BOX
Oil Bath Lubrication
Heat Treated Precision Gears
Inch, Metric, Module, And Diametrical Threads
HEAD STOCK
All Gears Chromium Molybdenum: Heat Treated And Precision Ground
Lubrication System Oil Bath
Electromagnetic Clutch With Brake Available For 4 1/8" Spindle Bore As Optional
STANDARD ACCESSORIES:
15" 3 Jaw Chuck
Coolant System
Steady/Follow Rest
Face Plate
20" 4 Jaw Chuck
Rapid Travel
4 Way Tool Holder
Halogen Light
Prices upon request.
Specifcations and prices are subject to cahnge without notice.
