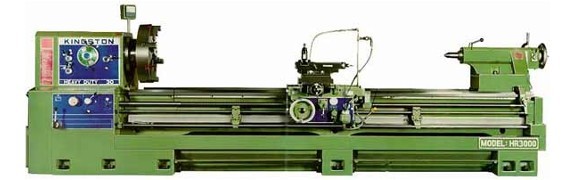

Kingston Lathe HR Series

HR-2000 HR-3000 HR-4000 HR-5000 HR-6000 HR-7000

Size Available: 30" x 80 Up To 40" x 280"

Swing over bed: ( 660mm) or 30" (760mm) 34" (870mm) or 40" (1020mm)

Swing over cross slide:
( 430mm) or 20 3/4" ( 530mm) or 25 1/8" ( 640mm) or 31" (790mm)

Swing in gap (gap bed lathe):
( 920mm) or 40 1/8" (1020mm) or 44 1/2" (1130mm) or 50 3/8" (1280mm)

Length of gap in front of face plate:
13 3/8" ( 340mm)

Height from floor to work center: 44 1/2" (1130mm) or 46 5/8" (1180mmO or 47 5/8" (1235mm) or 51 1/2" (1310mm)

Max. distance between centers: 80" (2000mm) I 120" (3000mm) I 160" (4000mm) I 200" (5000mm) I 240" (6000mm) I 280" (7000mm)

Hole through spindle: 4 1/16" (104mm)

Taper hole in center adapter ASA #450 x Morse No.6

Spindle nose: D-1-11" or A-1-11"

Number of speed changes: 16

Range of spindle speeds: 4-400 R.P.M., 6-600 R.P.M. or 8-800 R.P.M. or 12-1200 R.P.M.

Number of feed changes: Fine (60) Normal Coarse (30)

Range of feeds per revolution: *Fine 0.012mm-0.044mm 0.06mm-0.89mm Coarse 1.01mm-7.12mm

Longitudinal Cross: *Fine 0.00048"-0.0168" 0.0024"-0.0337"

.1/2 of longitudinal feed Coarse 0.0384"-0.2694")

Leadscrew diameter and threads per inch: 1 7/8" (48 center) 2T.P.I. or P=12mm

Threading range Whitworth: 2 to 28 (40)

T.P.I. Coarse 5/8" to 8" (16) lead
.......Metric 1 to 14 (31) mm pitch Coarse 16 to 200 (61) mm pitch

.......Module 0/5-7 (20) M Coarse 8 to 56 (30) M
.......D.P. 56-4 (40) D.P. Coarse 3 1/2" to 1/2" (30) D.P.

Compound rest tool slide travel: 9 3/4" (250mm)

Cross slide travel: 21 1/4" (540mm)

Tool shank size for American tool post: 1" x 1 1/4" (25x32mm)

Spindle diameter: 3 15/16" (100mm)

Spindle travel: 11 3/4" (300mm)

Center M.T.No.6

Width of bed: 22" (560mm)

Main drive motor: 15HP or 20 HP

Prices upon request.

Specifcations and prices are subject to cahnge without notice.
