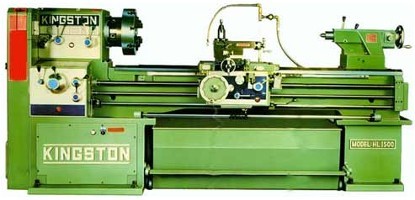

Kingston Lathe HL Series

HL-2000 HL-2500 HL-3000 HL-4000

Type D

21 x 80 21x 100 21 x 120 21 x 160

Type H

24 x 80 24 x 100 24 x 120 24 x 160

Swing over bed D: 21" (533mm) H: 24" (620mm)

Swing over cross slide:
D: 131/8" (340mm) H: 161/2" (427mm)

Swing in gap: (gap bed lathe)
D: 28 1/8" (720mm) H: 31 1/2" (870mm)

Length of gap in front of face plate:
6 3/4" (172mm)

Height from floor to work center: D:44 7/8" (1140mm) H: 46 3/4" (1188mm)

Max. distance between centers: 80"
(2036mm) 100"
(2536mm) 120"
(3130mm) 160"
(4150mm)

Hole through spindle: 3 1/8" (80mm)

Taper hole in center adapter: ASA #350 x Morse No. 5

Spindle nose: DI Cam lock (ASA-A2 or L optional orden)

Number of speed changes: 12

Range of spindle speeds: 25 to 1500 R.P.M.

Number of feed changes: 76

Range of feeds per revolution: Longitudinal Rack In Inch: 0.0017 - 0.0424

Inch Rack In metric: 0.029 - 0.707mm

Cross 1/2 of longitudinal feeds

Leadscrew diameter and thread: 1-5 /16" (34) p = 6mm or 4 T.P.I.

Threading range Whitworth: 4 to 56 T.P.I. (40) (By using change gears 2.19. T.P.I. 0.6, 0.9mm available)
.......Metric 0.5 to 7.0 (20) mm pitch

.......Module 0.5 to 7.0 (20) M
.......D.P. 4 to 56 (19) D.P.

Compound rest tool slide travel: 4 5/16" (110mm)

Cross slide travel: 14 3/16" (360mm)

Spindle diameter: 2 9/16" (65mm)

Spindle travel: 5 7/8" (150mm)

Center Morse: No.4

Width of bed: 14 1/2 (370mm)

Main drive motor: 7.5 HP or 10 HP (4P)

Floor space required: 158 7/8" x 37 3/8" 178 7/8" x 37 3/8" 203" x 37 1/8" 242" x 37 3/8"

Prices upon request.

Specifcations and prices are subject to cahnge without notice.
