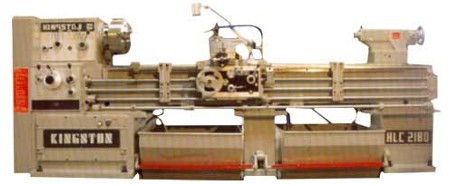

Kingston Lathe HLC Series

Swing over bed: 30.86" (530mm)

Swing over cross slide:
13.38" (340mm)

Swing in gap (gap bed lathe):
28.34" (720mm)

Length of gap in front of face plate:
6.10" (155mm)

Height from floor to work center: 44.17" (1122m)

Max. distance between centers: 60" (1526mm) 80" (2036mm)

Hole through spindle: 3/14" (80mm)

Taper hole in center adapter: ASA #350 X Morse No.6

Spindle nose: D1-8 Camlock

Number of speed changes: 12

Range of spindle speeds: 25 to 1500 R.P.M.

Number of feed changes: 80

Range of feeds per revolution: 1/2 of Longitudinal feeds

Leadscrew in inch: 0.0024" - 0.037"

Leadscrew in metric: 0.061 - 0.95 mm

Longitudinal Cross: 1/2 of longitudinal feeds

Leadscrew diameter and thread: 1.34" (34mm) and 4TPI (P=6 mm)

Threading range Whitworth: 4 to 56 TPI (40)
2 and 19 TPI available by using change gears
.......Metric 0.5 - 7.0 mm pitch (23)
0/6 and 0/9 mm pitch available by using change gears.

.......Module 0.5 to 7.0 M (20)
.......D.P. 4 to 28 D.P (19)

Tool slide travel: 4.33" (110 mm)

Cross slide travel: 10.62" (270 mm)

Quill Travel: 6/3" (160 mm)

Center Morse Taper: No.4

Width of bed: 14.56" (270 mm)

Main drive motor: 10 HP (4P) (7.5KW), 220/440 volt

Prices upon request.

Specifcations and prices are subject to cahnge without notice.
