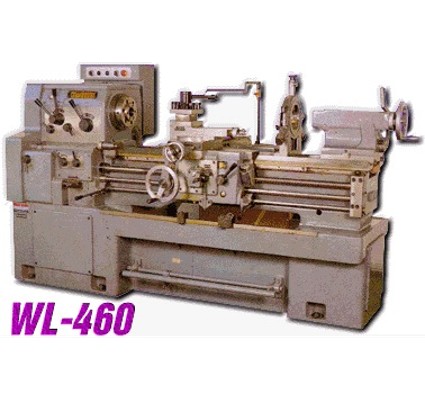

Whacheon Lathe Model # HL-460
MODEL40" (1,000)
Swing over bed: 18-3/8" (460)
Swing over bed from face plate
Up to 7" in short taper nose.
Up to 6" in cam lock nose: 19-1/4" (490)
Swing over cross slide: 11-1/50" (280)
Swing over gap: 26-7/9" (680)
Distance from floor to center: 42-1/8" (1,070)
Distance from bed to center: 9-1/20" (230)
Distance between centers: 40" (1,000)
Spindle nose: D1-6
Spindle bore: 2-3/64" (52)
Taper of spindle bore: M.T. No. 6
Taper of center: M.T. No. 4
Number of spindle speeds: 12
Range of spindle speeds (R.P.M.): 32, 62, 82, 112, 160, 200, 285, 395, 510, 710, 1010, 1800
FEEDS
No. of feed changes (Long & Cross): 40 kinds
Range of longitudinal feeds: 0.0018-0.025" (0.045-0.627)/rev. &
0.0035-0.05" (0.090-1.254)/rev.
Range of cross feeds: 0.0018-0.025" (0.045-0.627)/rev. &
0.0035-0.05" (0.090-1.254)/rev.
THREADS
Lead Screw: 1-1/4" dia x Acme threat 4 T.P.I. or 6mm pitch
Inch threads: 80-4 T.P.I.
Metric threads: 0.25-7mm pitch
D.P. threads: 112-8
Module threads: .05-3.5
TOOL SLIDE
Cross slide travel: 10" (255)
Compound rest travel: 5-7/8" (150)
Maximum size cutting tool: (X x Y) 1 x 1" (25 x 25)
TAIL STOCK
Spindle travel: 6" (150)
Taper of center: M.T. No. 4
BED
Width of the bed face: 13-3/4" (350)
Width of gap (from face plate): 8-1/2" (220) in short taper nose:
7-7/8" (200) in cam lock nose
MOTOR
Main spindle motor: 7.5 HP (5.5 KW) 4P
Coolant pump motor: 100 W 2P
Prices upon request.
Specifcations and prices are subject to cahnge without notice.
