Whacheon Lathe Modle # HL-580

New Lathes

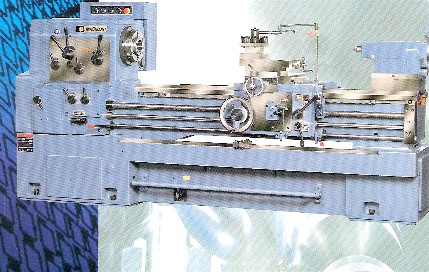

Whacheon Lathe Modle # HL-580

Specifications MODEL 60" (1,500)

SWING

Swing over bed: 20-3/4" (580)

Swing over bed from face plate:
Up to 7" in short taper nose. Up to 6" in cam lock nose: 23" (585)

Swing over cross slide: 14-11/34" (360)

Swing over gap: 31-1/2" (810)

DISTANCE

Distance from floor to center: 43-11/16" (1,110)

Distance from bed to center: 11-1/4" (286)

Distance between centers: 60" (1,500)

SPINDLE

Spindle nose: D1-8

Spindle bore: 3-1/32" (77)

Taper of spindle bore: M.T. No. 7

Taper of center: M.T. No. 4

Number of spindle speeds: 12

Range of spindle speeds (R.P.M.): 28, 52, 67, 93, 126, 165, 225, 312, 400, 558, 765, 1350

FEEDS

No. of feed changes (Long & Cross): 40 kinds

Range of longitudinal feeds: 0.0014-0.0196" (0.036-0.50)/rev. &
0.0028-0.0392" (0.072-1.00)/rev.

Range of cross feeds: 0.0015-0.0212" (0.037-0.54)/rev. &
0.0029-0.0424" (0.075-1.08)/rev.

THREADS

Lead Screw: 1-1/2" dia x Acme threat 4 T.P.I. or 6mm pitch

Inch threads: 80-4 T.P.I.

Metric threads: 0.25-14mm pitch

D.P. threads: 112-8

Module threads: .05-3.5

TOOL SLIDE

Cross slide travel: 11-7/8" (300)

Compound rest travel: 6-5/8" (170)

Maximum size cutting tool: (X x Y) 1-9/32" x 1-9/32" (32 x 32)

TAIL STOCK

Spindle travel: 6" (150)

Taper of center: M.T. No. 5

BED

Width of the bed face: 16-1/2" (420)

Width of gap (from face plate): 10-5/8" (270) in short taper nose

MOTOR

Main spindle motor: 10 HP (7.5 KW) 4P or
15 HP (11 KW) 4P (Optional)

Coolant pump motor 1/10 HP (75 W) 2P

Prices upon request.

Specifcations and prices are subject to cahnge without notice.
