ACRA Lathe 1600GNX

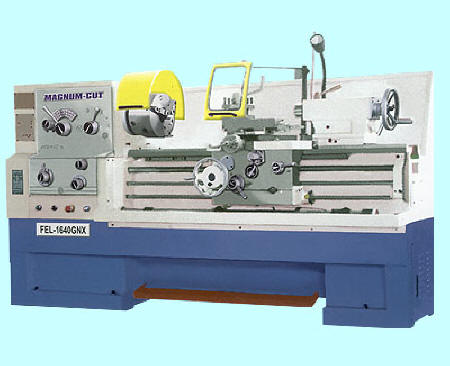

ACRA 1600 GNX Model #1640

Specifications

CAPACITY
Swing Over Bend......16"
Swing Over Cross Slide.....10"
Swing In Gap......26"
Distance Between Centers.....40"
Bed Width......13.20"

SPINDLE
Spindle Nose.....D1-8
Spindle Bore.....3 1/8"
Taper of Spindle....MT #5
Spindle Speed.......12 Steps 32-1500 RPM

TRAVEL
Cross Slide.....8"
Compound Slide.....4"

THREADS & FEEDS
Inch Threads.....65 Kinds 1 5/8-72 TPI
Metric Threads.....28 Kinds 0.5-20MM
Module Threads.....24 Kinds 0.25-10
Diametrucal Threads.....45 Kinds 3.25-96
Longitudinal Feed.....0.0015-0.0913 IPR
Cross Feed..... 0.0006-0.0365 IPR

TAIL STOCK
Quill Diameter..... 2 3/4"
Quill Travel....... 3 3/4"
Quill Taper........ MT #4

POWER
Spindle Drive Motor..... 7.5 HP
Coolant Motor...... 1/6 HP

Standard Equipment

10" 3 Jaw Chuck
12" 4 Jaw Chuck
Splash Guard
Face Plate
Coolant System
Tool Box With Tools
Steady/Follow Rest
Gap Bed

Optional Accessories

Micro Bed Stop
Follow Rest
Taper Attachment
Taper Attachment Installation
Lever Type 5C Collet Closer JFK
Import Collet Closer
Acu-Rite D.R.O. 40"
Acu-Rite D.R.O. 60"
Sony D.R.O. 40"
Sony D.R.O. 60"
Anilam D.R.O. 40"
Anilam D.R.O. 60"
Newall D.R.O. 40"
Newall D.R.O. 60"
D.R.O. Installation
Import Quick Change Tool Holder
Halogen Light
Live Center "MT 4"

Please Call For Price And Availability.

Specifications And Prices Are Subject To Change Without Notice.
